What is CELL DAMPER ?

CELLDAMPER is a foamed Polyurethane Elastomer developed for anti-vibration material to reduce oscillation. It is used in various fields from its superior anti-vibration performance which was not able to achieve with the traditional foam. In order to meet our customer requirements there are 4 types and enable to fabricate into various thickness and dimensions.


Characteristics

1. Good anti-vibration

2. Low compression set

3. Non-silicone, Non-sulfur, Non-halogen

Applications

Construction

Heliport

Wood deck of Roof

Wind turbine generator

Anti-Vibration mat of Construction machinery

General instrumentation

Door Cushoning

Roof Cushoning

Battery unit

Rail Pad

Automotive・Railway

MRI

Transformer

Generator

Hydraulic unit

Electronics

HDD damper

Relay

Series

Line Up

Slide To RIGHT For Further Details

Unit BF-150 BF-300 BF-500 BF-700 Test Codition
Density kg/m3 180 290 490 690 JIS K6400
Permissible contact pressure N/cm2 5 10 40 110 -
Static spring constant N/mm 50 150 500 1580 JIS K6385
Dynamic spring constant N/mm 210 560 1290 3430 JIS K6385
Rubber hardness Hs - 5 15 40 60 JIS K6253
Compression set % 1.5 1.5 1.5 3 JIS K6262
Ball rebound % 30 40 50 50 JIS K6400
Tensile strength N/cm2 80 130 185 285 JIS K6251
Elongation % 220 310 260 160 JIS K6251
Tear strength % 25 60 140 210 JIS K6252
Flame-retardant FMVSS
NO.302
- - - - -
UL94 HBF equivalent equivalent - equivalent -
ASTM E662 - equivalent - equivalent -
BSS 7239 - equivalent - equivalent -

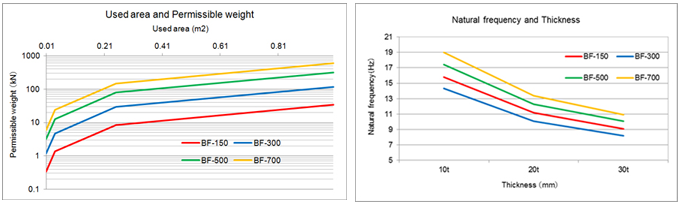

Vibration characteristic

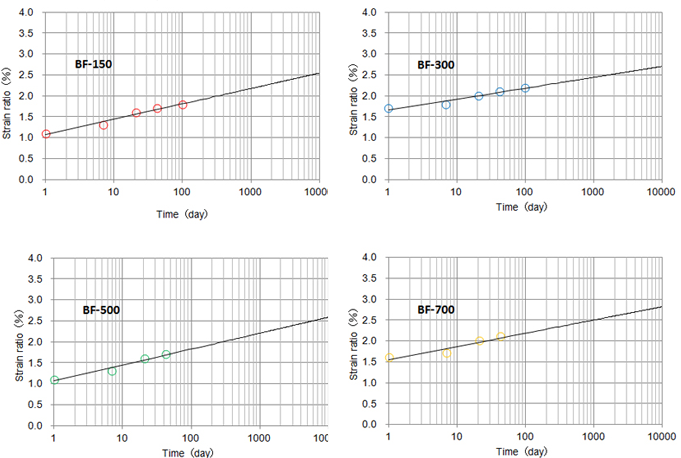

Creep and Strain characteristic

Test condition : 25℃, 15%compression

Creep and Strain characteristic

Test condition : 5Hz, 15% compression, 10 thousand times

Slide To RIGHT For Further Details

Unit BF-150 BF-300 BF-500 BF-700
Repeat compression set % 2.0 2.0 2.5 2.5

Clean Performance

Unit Limited Detect BF-150 Test Condition
Sulfur ppm 10 N.D. US EPA 8270D:2007
Dimethyl Siloxane (D3-D12) ppm 0.1 N.D. BS EN 14582:2007
Halogen (F, CI, Br, I) ppm 50 N.D. BS EN 14582:2007

Product size

Unit BF-150 BF-300 BF-500 BF-700
Size mm 500 x 1000 500 x 1000 500 x 1000 500 x 1000
Thickness mm 0.5 – 50 1.5 – 50 3.0 – 40 3.0 – 40
