What is FOLEC?

FOLEC providing high functions newly born from unique foam technology along with safe and clean environmental performance to meet the demand of the times.


Product Lineup

LZ-2000

GS072

GS061

OPN

EH701

EM301


FOLEC is a high-function polyolefin foam sheet of fine cells produced with unique foam technology.

The odorless and clean material with low environmental impact is available to a wide range of fields.

Furthermore, in order to meet the diverse needs of customers, INOAC offers an assortment of six standard types that are available to printing and can be processed in a wide variety of shapes.

Slide To RIGHT For Further Details

Model Thickness (mm) Density (kg/m3) Tensile strength (TD) (MPa) Tensile strength (MD) (MPa) Elongation (TD) Elongation (MD) Compressive stress and strain 10% (MPa) Compressive stress and strain 25% (MPa) Compressive stress and strain 50% (MPa)
LZ-2000 0.9, 1.8 60 0.8 1.3 80, 90 60 0.013 0.020, 0.018 0.033, 0.029
GS072 1.6 65 0.8 1.3 80 80 0.008 0.014 0.026
GS061 0.5, 0.7, 1.0, 1.2 85, 75, 70, 65 1.1, 0.8, 0.8, 0.7 1.8, 1.4, 1.2 70, 80 70, 80, 90 0.008, 0.009, 0.010 0.014, 0.015, 0.016, 0.021 0.026, 0.028, 0.030, 0.040
OPN 0.5, 1.0 40 0.2 0.5 60 100 0.005 0.007 0.013
EH701 0.1 750 12 19 140 340 - 0.2 1.0
EM301 0.1 300 7 9 120 110 - 0.04 0.2

Food-related

An environment-friendly, low-volatile organic compound (LVOC) with highly functional features, including impact absorption, water sealing, and dust-proof performace. Moreover, it is an odorless clean material that conforms to the Food Sanitation Act.

Packing with highly functional water sealing.
Clean performance and low stress.


Materials & Packaging

An environment-friendly, low-volatile organic compound (LVOC) with highly functional features, including impact absorption, water sealing, and dust-proof performace.

Clean performance and impact absorption performance.
High strength and excellent impact absorption.


Product Specifications

Model Thickness (mm) Width (m) Length (m) Color
LZ-2000 1.8, 0.9 1200 100 White
GS072 1.6 1200 100 Black
GS061 0.5, 0.7, 1.0, 1.2 1200 100 Black
OPN 0.5, 1.0 1150 100 White
EH701 0.1 1020 100, 500 Black
EH301 0.1 1020 100 Black

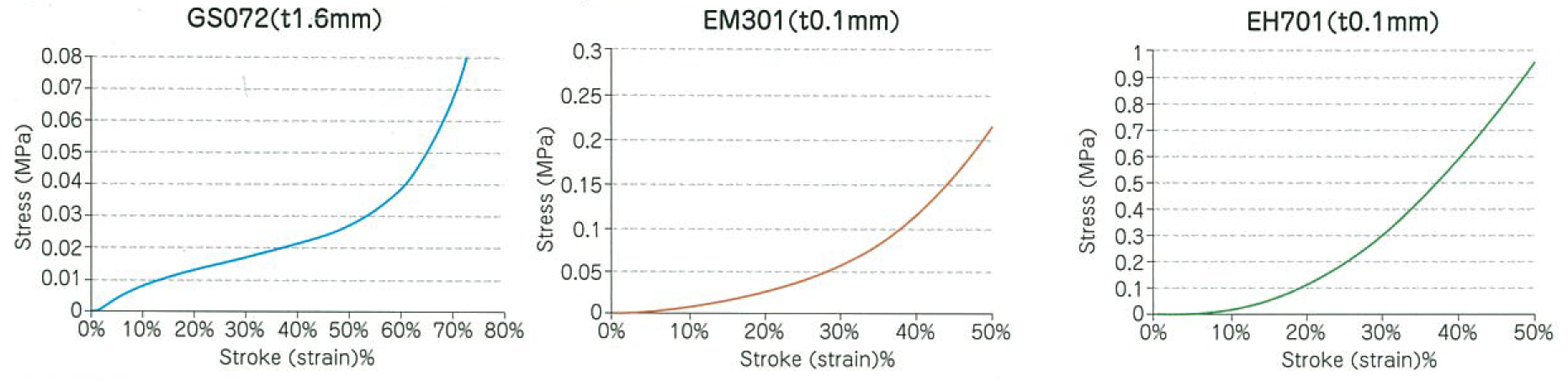

SS Curve


Evaluation of impact absorption rate (pendulum)

Grade 16mJ 24mJ 40mJ 100mJ
LZ-2000 (t1.8mm) 89% 89% 89% 86%
LZ-2000 (t0.9mm) 83% 82% 80% 71%
GS072 (t1.6mm) 90% 89% 88% 82%
OPN (t1.0mm) 88% 84% 76% 64%
EH701 (t0.1mm) 8% 6% 4% 6%
EH301 (t0.1mm) 19% 12% 11% 3%

Dustproff evaluation (powder leak)

Grade 1.0mm wide 0.75mm wide
FOLEC EH701 (t=0.1mm) Without intrusion W-ithout intrusion
FOLEC EH301 (t=0.1mm) Without intrusion W-ithout intrusion
Different company's PE foam (t=0.1mm) Without intrusion W-ithout intrusion

Moisture permeation evaluation

Specimen thickness (mm) Moisture permeability (g/m2-24h>
FOLEC continuous foam (OPN) 1.0 5200
FOLEC closed-cell foam 0.1 21

Air permeability evaluation

Grade OPN
Thickness (mm) 1
Density (kg/m3) 40
Air permeability (cm3/cm2/s) 5

Chemical evaluation

Chemical LZ-2000
30% HCI No or almost no effect.
30% NaOH No or almost no effect.
Ethyl acetate No practical problems, depending on the conditions, though there is some impact.
Ethanol No or almost no effect.
Acetone No practical problems, depending on the conditions, though there is some impact.

Thermal insulation evaluation (thermal conductivity)

Thermal conductivity (W/m-K)
LZ-2000 0.028
GS072 0.028
OPN 0.028
General-purpose PE foam 0.039
General-purpose PS foam 0.040

Thermal insulation evaluation (thermal conductivity)
