Home Product INOAC PE LITE

INOAC PE LITE

Standard - Closed cell foam, excellent water / weather resistance.
Conductive - Closed cell foam, minimal electric resistance.
Open Cell - Open cell foam, highly flexible.
Sheet Roll - Closed cell foam with numerous processing possibilities, including vacuum formation, laminate processing, etc.


About Product

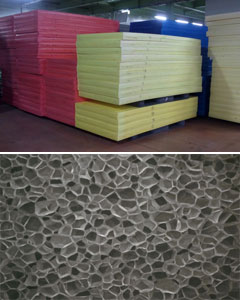

BLOCK PRODUCTS

Block products are foaming object of the shape of Block made to foam to polyolefin system resin between 5 times and 30 times Thickness is from 30 mm to 100 mm. Size is based on a 1-m square and 1 m x 2 m. There is a product which had various hardness and a feel by selection of foaming magnification or resin.

There are an open cell type, an electric conduction type, an antibacterial type, etc. other than a common type.


SHEET ROLL PRODUCTS

Sheet roll products are foaming object of the shape of a continuation sheet made to foam to polyolefin system resin between 10 times and 40 times. There are an open cell type, a heat-resistant type, etc. other than a common type.

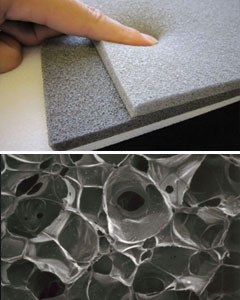

OPEN CELL PRODUCTS

It is the type which interconnecting-cell-ized the olefin system foaming object by Special processes.

It excels in the characteristic as a sealant, because breathability is low and flexiblity is excellent according to the cellular structure.

The foaming object of an interconnecting cell object is considered that water leaks. However, by the softness, since the flexibility to a sealing surface is high and compression stress's is small, it has a function which can carry out a seal by low load.


CONDUCTIVE PRODUCTS

Conductive products are adding carbon black at high concentration to polyolefin system resin. It is the independent air-bubbles foaming object which made the electrical resistance value low, and there is a product between 10 times and 30 times.

The example of a use:The packing material of IC chip * In order that ordinary polyolefin form may show very strong electrical insulation properties, it tends to be tinged with static electricity, and is not suitable for the shock absorbing material of the electronic industry material.


PE-LITE Physical Properties & Specifications

Slide To RIGHT For Further Details

Standard Products

Item Density (kg/m3) 25% Compression Hardness (MPa) Product Size (mm) Color
A-050F 190 0.310 40X1000X1000 White
A-20 160 0.200 40X1000X1000 White, Pale, Orange
A-061F 150 0.180 40X1000X1000 Black
A-061HF 150 0.240 30 / 40X1000X1000 White
A-071F 140 0.200 40X1000X1000 White
A-080 140 0.340 40X1000X1000 Black, Gray
A-082F 120 0.150 40X1000X1000 Gray, Bright Green
A-083F 140 0.150 45X1000X1000 White
M-082F 130 0.130 45X1130X1130 Bright Green
A-12 120 0.250 45X1000X1000 White, Black, Gray
A-090F 120 0.350 40X1000X1000 Gray
A-110F 100 0.190 30 / 40 /50X1000X1100 Gray
A-122F 93 0.090 45X1000X1100 White, Blue
A-8 64 0.090 70X1000X1100 White, Black, Gray, G2, Red, Blue, Green, Yellow
A-150H 70 0.100 70X1000X1100 G2
A-151 62 0.090 70X1000X1100 White, Black, Gray
A-151F 79 0.090 40X1000X1100 Gray
A-153 67 0.060 40X1000X1100 White
A-155 70 0.040 45X1000X1100 White
B-200 45 0.080 100X1000X1100 White, Black, Gray, Red, Blue, Green
B-4 24 0.050 100X1000X1100 White, Black, Gray, Red, Blue, Green, Yellow
B-302 28 0.030 100X1000X1100 White

Special Products

Item Density (kg/m3) 25% Compression Hardness (MPa) Product Size (mm) Color
AE-100 93 0.250 45X1000X1000 Black
AE-200 51 0.060 100X1000X1000 Black
AE-300 35 0.040 70X1000X1000 Black
RP-300S 29 0.006< (50% Compression) 70X1000X1000 White, Black, Gray, Dark Blue

Sheet Roll Products

Item Density (kg/m3) 25% Compression Hardness (MPa) Product Size (mm) Color
L-5 51 0.040 5X1050X100m, 5X1000X100m, 10 / 15X1000X50m White, Black
L-10 91 0.130 5X1000X50m White
L-3000 33 0.046 4-6X1000X150m, 7-10X1000X100m, 11-15X1000X50-90m White, Black, Gray
LS-3 30 0.040 2X1000X300m, 3 / 4X1000X200m, 5X1000X150m White, Black
LS-5 50 0.050 2X1100X200m, 3X1000X200m White
LS-10 100 0.070 1X1000X400m, 2X630X100m, 3X1000X100m White
LSL-8 130 0.130 0.8X1000X300m, 1.2X1000X200m Black
Sealflex CP-3 29 0.006 (50% Compression) 3.5 / 10X1000X20m Gray
Sealflex CP-3S 28 0.005 (50% Compression) 3.5 / 10X1000X20m Black


PE-LITE Physical Properties & Specifications (High Performance Type)

Category Density (kg/m3) Block Size Color Characteristics Application
RL-150 75 45X1000X1000 White / Black High Resiliency / High Friction Packing/ General Merchandise
PT-101 110 45X1100X1100 Gray High Elasticity / Heat Resistance Packing Spacer
PT-102 108 45X1100X1100 White / Black High Elasticity / Heat Resistance Packing Spacer
B-200H 47 100X1000X1000 White / Gray / Blue Low Thermal Contraction / High Strength Thermal Insulation
RL-150FR 85 45X1000X1000 Black Halogen and Phosphorus Free UL-94 HBF Packing
B-300FRE 33 100X1000X1000 Gray 0.5mm-1.5mm UL-94 HF-1
Above 1.5mm HBF Halogen and Phosphorus Free
Cushioning / Thermal Insulation
RP-300FRE 45 70X1000X1000 Black / Gray Low Combustibility / Halogen and Phosphorus Free / Sealant Sealant
RP-300FRND 42 70X1000X1000 Black / Gray High Combustibility Sealant
RP-300S 29 70X1000X1000 White / Black / Gray / Dark Black Open Cell / Low Stress Sealant / Sound Absorption / Cushioning
CP-3 29 3 / 5 /10X1000X20M Gray Open Cell Sheet Roll / Air Sealing Sealant
CP-3S 28 3 / 5 /10X1000X20M Black Open Cell Sheet Roll / Water Sealing Sealant
AE-100 93 35X1000X1000 Black Low Electrical Resistance IC Packaging
AE-150 60 70X1000X1000 Black Low Electrical Resistance IC Packaging
AE-200 51 100X1000X1000 Black Low Electrical Resistance IC Packaging
AE-150AS 63 45X1000X1000 G2 Antistatic Type Packaging
B-300AS 24 100X1000X1000 Red / Blue Antistatic Type Packaging
M-072FD 120 45X1000X1000 Red / Blue / Green / Yellow Antimicrobial / Mildew proof Type General Merchandise
B-200D 45 100X1000X1000 Red / Blue Antimicrobial Type General Merchandise
D-104F 140 45X1100X1100 Blue Flexibility General Merchandise Cushioning
A-155 70 45X1000X1000 White Flexibility General Merchandise Cushioning
B-302 28 100X1000X1000 White Flexibility General Merchandise Cushioning
